1 X 10" Mid Hoparlör + 1,75" VC Tweeter
2 Yollu Line Array Hoparlör Sistemi

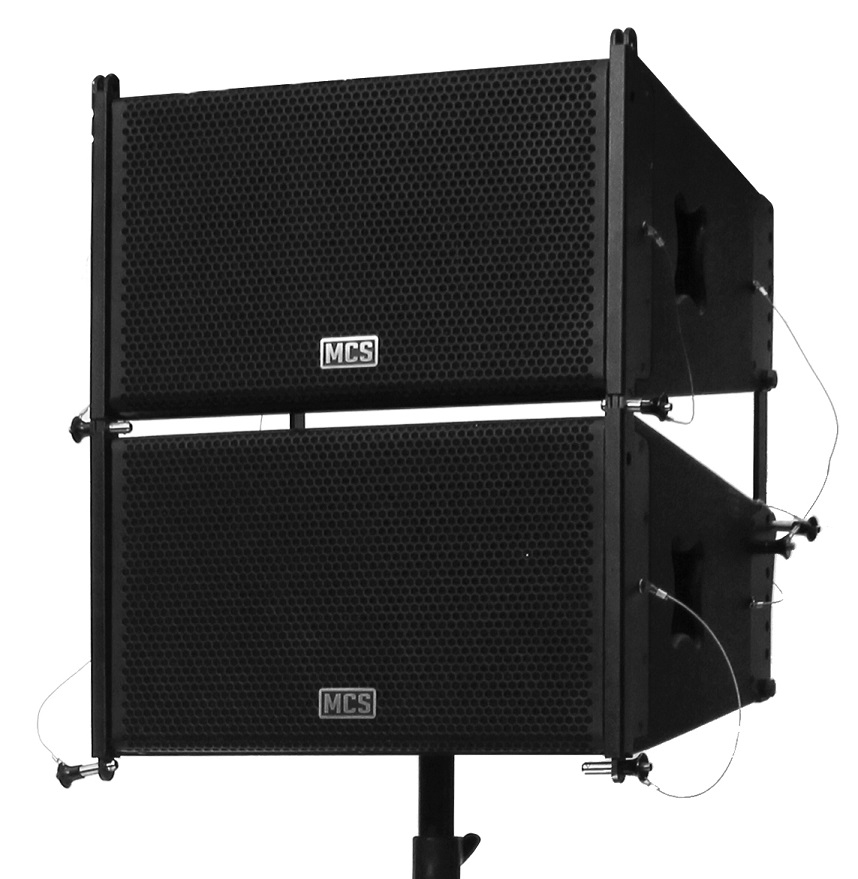

Fotoğrafta 2 adet gösterilmiştir.
| Nominal Impedance |
8 Ohm |
| Power Kullanımı(RMS/Prg./Peak |
300W/600W/1200W |
| Frequency Response (-3dB) |
70 Hz -19 kHz |
| Frequency Response (-10dB) |
60 Hz - 20 kHz |
| Hassasiyet(1W@1mt) |
100 dB |
| Max. Calculated SPL |
135 dB |
| LF |
1x10'' Mid,3'' VC |
| HF |
1'' out Tw, 1,75'' VC |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
Sisteme Bağlı |
| Crossover Frequency |
2 kHz |
| Cabnet Structure |
15mm Baltic Birch Cabinet, High quality rough epoxy paint,
Elektrostatik toz boyalı çizilmeye dayanıklı çelik ön panjur, özel horn yapısı
|
| Connection |
Speakon |
| Boyut |
560 x 370 x 515 mm |
| Weight |
24 Kg |
