BLUESTAR B-330BSW

350 Watt 17R 3 in1 Beam-Spot-Boyama Robot Işık Sistemi

Technology Parameter
  Body
  1.Aluminium structure with streamline plastic cover.
   2.Two side handles for transportation
   3.Device locking Pan and Tilt mechanisms for transporation and maintenance
 Voltage
    AC100-240V  50/60HZ
  Lamp
   1.Type:17R, 350W
    2.Output lamp power:350W
    3.Color temperature:8000K
    4.Average used life :2000 Hours
  Optics
    1.3-lens optical group combination
    2.Focus:electronic
    3.Two beehive prisms

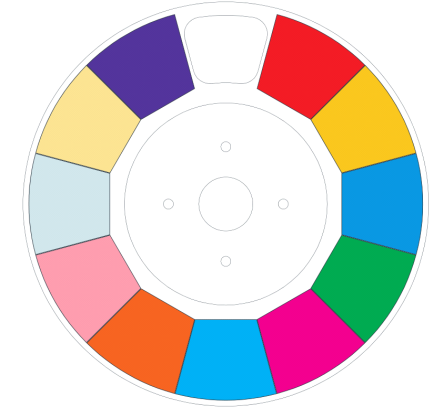

   Color System
    1、11 colors+white
    2、rainbow(seven color)+white
  Frost  Effect

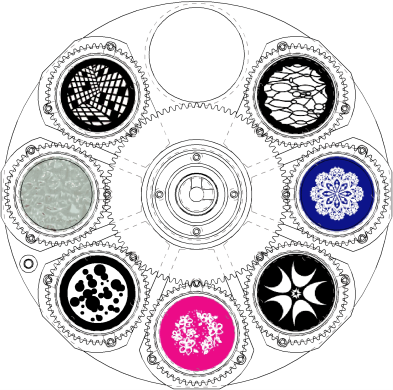

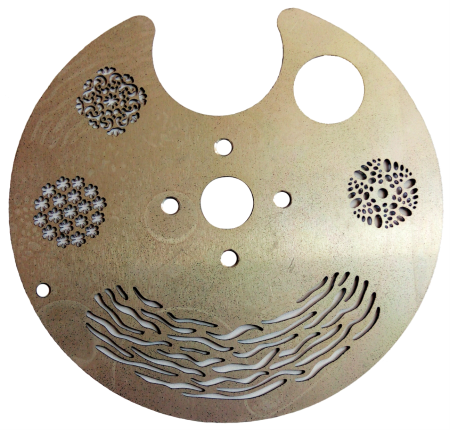

 Gobo System
 Static gobo:14 gobos+white
  Dynamic gobo:3gobo+dynamic gobo+white
  Rotating gobo:4 glass gobo of black bottom+
  2 colored glass gobo +1 diamand glass goto
Strobe and Dimmer
Mechanical shutter and adjustable speed strobe effect.
Scan angle: Pan=540°,Tilt=270°
Scan speed
 Pan=2.7second,Tilt=1.4second
Beam angle
angle=0~3°
Control signal
DMX512,3-Pin DMX Input and output.
 Electronics
1.Machine reset from the control pannel or the controller.
2.ON/OFF lamp control from the control pannel or the controller.
3.Electronic monitoring with status error.
Safety Devices
1.Bipolar circuit breaker with thermal protection.
2.Automatic break in power supply in case of overheating or failed operation of cooling system.
3.forced ventilation with axial fans.
4.Hanging system:with fast-lock omega clamps (1/4 turn)on the base.
Weight
Net  Weight: 23.05kg
